High-Performance Full Servo Adult Diaper Making Machine for Large-Scale Production Needs

Nome da marca:	Womeng
Número do modelo:	WM-SCK02
MOQ:	1 peça
preço:	$500,000.00-$800,000.00
Detalhes da embalagem:	Caixa de madeira do Seaworthy
Condições de pagamento:	L/c, d/a, d/p, t/t

Informações pormenorizadas

Descrição do produto

Informações pormenorizadas

Lugar de origem:

Fujian, China

Certificação:

Eficiência:

Projeto:

Sistema de controlo servo completo

Linha de Produção:

Totalmente automático

Capacidade:

250-400 peças/minuto

Sistema de recolha de resíduos:

Coleta de resíduos de automóveis

Tensão:

Sistema de controle:

Sistema de controle do PLC

Função:

Produção automática, alta eficiência, desempenho estável

Sistema de empilhamento:

Sistema automático de empilhamento

Cor da máquina:

De acordo com o personalizado

Habilidade da fonte:

12 conjuntos/ano

Destacar:

full servo adult diaper machine

large-scale diaper production machine

high-performance adult diaper making machine

Descrição do produto

Product Info

Product size	M: 680X450 L: 800X650 XL: 950X760(Customixed according to customer requirement)
Product structure	Product structure: upper & lower tissue, cotton core (mix with SAP), cover sheet hydrophilic non-woven , ADL (Acquisitiondistribution layer) non-woven,leak guard hydrophobic non-woven back sheet,Waist band non-woven,color pattern sticker,elastic waist band, discarding sticker.
Control system	PLC control system,HMI Operating on the LED touch screen,Configure HDTV monitor
Drive system	Servo Drive(Easy to change size), timing belt and flat belt are import products, and all the key parts, are import bearings.
Tension system	Top tissue paper,bottom tissue paper,hydrophobic nonwoven(leg cuff),top nonwoven,ADL,back sheet,elastic nonwoven are adopt A&B shaft active unwinding by inverter motor.
Safety system	It has safety device on the operating side, matched with urgent stop switch.High audio fan uses sound insulation or silencer.
Packaging system	according to customer requirements with palletizer machine (double push double exit ) adjustable
Materials corrective system	Materials corrective system: Adopt international famous brand deviation correction system
Power	380V, 50HZ three phase five wire
Machine Capacity	400KW (Excluding glue machine and air compressor)
Bleed pressure	0.6-0.8Mpa (Air compressor needs to be prepared by customers)

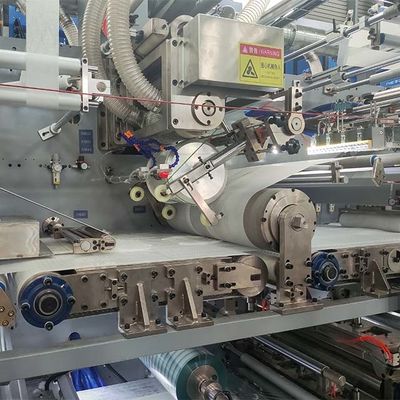

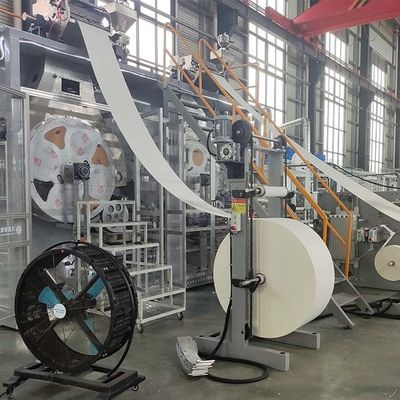

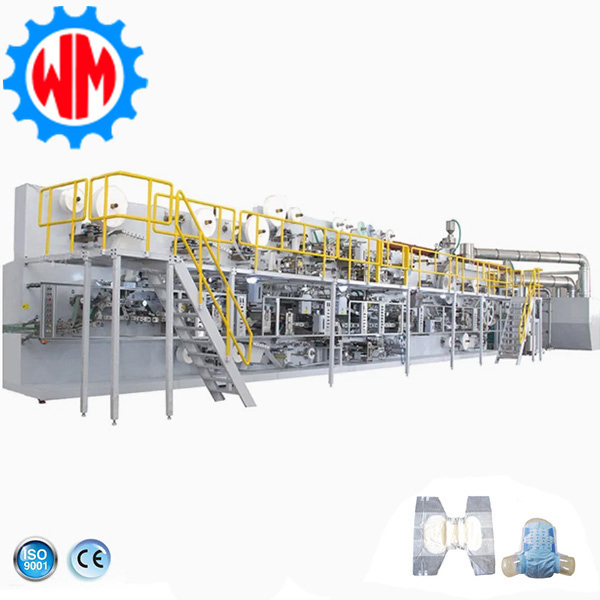

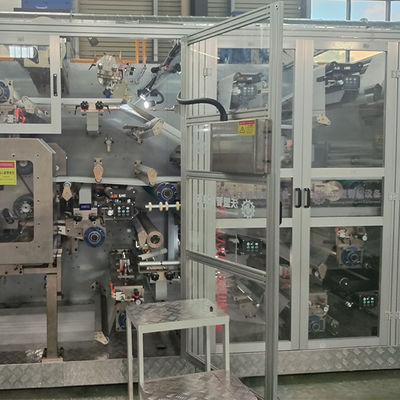

High-Performance Full Servo Adult Diaper Making Machine for Large-Scale Production Needs 0

High-Performance Full Servo Adult Diaper Making Machine for Large-Scale Production Needs 1

High-Performance Full Servo Adult Diaper Making Machine for Large-Scale Production Needs 2

High-Performance Full Servo Adult Diaper Making Machine for Large-Scale Production Needs 3

High-Performance Full Servo Adult Diaper Making Machine for Large-Scale Production Needs 4

High-Performance Full Servo Adult Diaper Making Machine for Large-Scale Production Needs 6

High-Performance Full Servo Adult Diaper Making Machine for Large-Scale Production Needs 7

High-Performance Full Servo Adult Diaper Making Machine for Large-Scale Production Needs 8

High-Performance Full Servo Adult Diaper Making Machine for Large-Scale Production Needs 11

Whatsapp: +008615805080212

Email:jessie@wm-machinery.com

https://www.diapersmachines.com

Compliance and Safety: Conform to global standards and avoid market risks

Product safety and compliance: The diapers produced by the production line meet international common safety standards such as the EU CE, the US FDA, and ISO (such as "formaldehyde-free, no irritating components, and skin allergenicity up to standard"). Customers can meet the access requirements of the target market without additional modifications, making it particularly suitable for the European and American markets with high safety requirements for products.

Equipment environmental protection and labor safety: The noise (≤75 decibels) and dust emissions (≤XXmg/m³) during the operation of the equipment comply with international environmental protection standards and will not pollute the workshop environment. It is also equipped with safety devices such as emergency stop buttons, guardrails, and heat insulation layers for high-temperature components to protect the safety of workers during operation, meeting the safety production requirements of the International Labour Organization (ILO) and helping customers avoid labor compliance risks.

Traceability support: The production line can be connected to a simple production traceability system (such as recording the raw material source, production time, and operator of each batch of products). In case of product quality issues in the future, customers can quickly locate the cause, which meets the traceability requirements for "medical device products" in some countries (such as the EU MDR regulation).
