Detalhes dos produtos

Casa > produtos >

Máquina de fazer calças de bebé

Advanced Baby Training Panties Making Machine Full Servo Control with CE

Todas as categorias

Máquina de fazer fraldas para bebés

Máquina de fazer fraldas para adultos

guardanapo sanitário que faz a máquina

Underpad que faz a máquina

Máquina de fazer calças de bebé

máquina de embalagem de fraldas

Máquina de fabricação de fraldas

Máquina de revestimento de calcinhas

Contacte-nos

Mrs. Jessie

jessie@wm-machinery.com

18859442931

Contacte agora

Advanced Baby Training Panties Making Machine Full Servo Control with CE

Nome da marca:	Womeng
Número do modelo:	WM-STP01
MOQ:	1
preço:	$500,000.00-$800,000.00
Detalhes da embalagem:	Caixa de madeira do Seaworthy
Condições de pagamento:	L/C, D/A, D/P, T/T, Western Union, MoneyGram

Informações pormenorizadas

Descrição do produto

Informações pormenorizadas

Lugar de origem:

Fujian, China

Certificação:

Automação:

Automático completo

Tipo de produto:

Máquina de fazer calças de treino para bebés

Faixa de tamanho:

S, M, L, XL (de acordo com personalizado)

Garantia:

1 ano

Sistema operacional:

Tela de toque

Doença:

Função:

Cortar, dobrar e selar automaticamente

Material:

Tecido não tecido

Sistema de controle:

Capacidade de produção:

500-700 peças por minuto

Habilidade da fonte:

12 conjuntos/ano

Destacar:

baby training panties making machine

servo control baby pants machine

CE certified baby pants machine

Descrição do produto

Product Info

Product size	35m6m3m(for reference only)
Product structure	Product structure: upper & lower tissue, cotton core (mix with SAP), cover sheet hydrophilic non-woven , ADL (Acquisitiondistribution layer) non-woven,leak guard hydrophobic non-woven back sheet,Waist band non-woven,color pattern sticker,elastic waist band, discarding sticker.
Control system	PLC control system,HMI Operating on the LED touch screen,Configure HDTV monitor
Drive system	Semi Servo Drive, timing belt and flat belt are import products, and all the key parts, are import bearings.
Tension system	Top tissue paper,bottom tissue paper,hydrophobic nonwoven(leg cuff),top nonwoven,ADL,back sheet,elastic nonwoven are adopt A&B shaft active unwinding by inverter motor.
Safety system	It has safety device on the operating side, matched with urgent stop switch.High audio fan uses sound insulation or silencer.
Packaging system	according to customer requirements with palletizer machine (double push double exit ) adjustable
Materials corrective system	Materials corrective system: Adopt international famous brand deviation correction system
Power	380V, 50HZ three phase five wire
Machine Capacity	230KW (Excluding glue machine and air compressor)
Bleed pressure	0.6-0.8Mpa (Air compressor needs to be prepared by customers)
Machine weight	100 Tons approximately

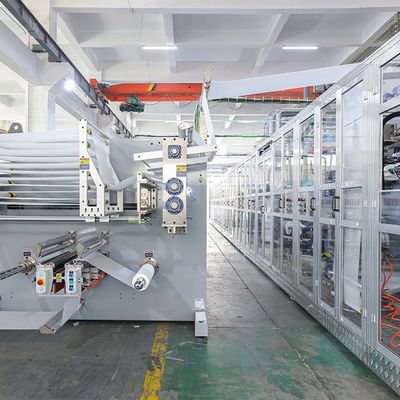

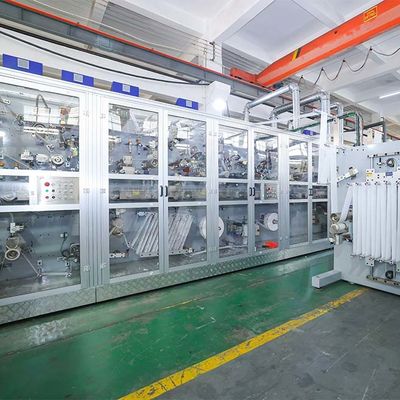

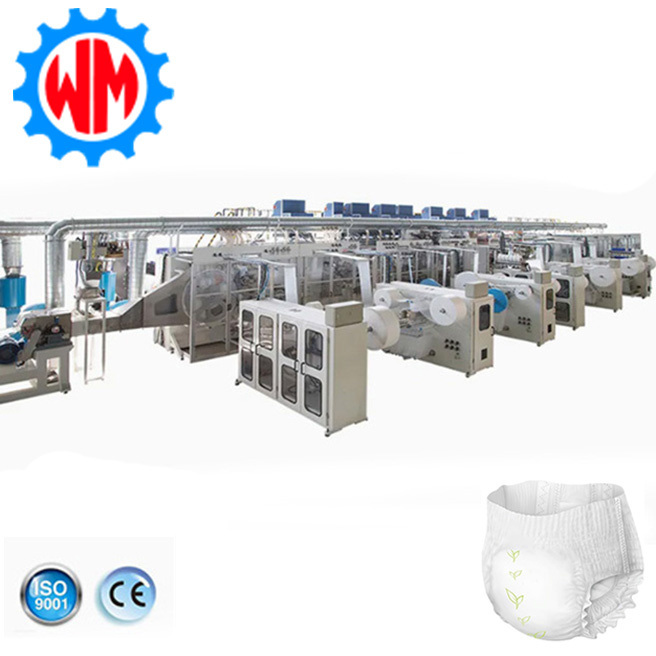

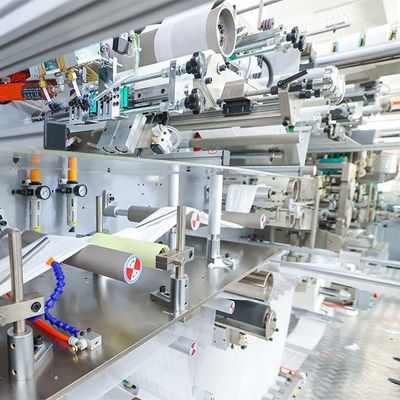

Advanced Baby Training Panties Making Machine Full Servo Control with CE 0

Advanced Baby Training Panties Making Machine Full Servo Control with CE 1

Advanced Baby Training Panties Making Machine Full Servo Control with CE 2

Advanced Baby Training Panties Making Machine Full Servo Control with CE 3

Advanced Baby Training Panties Making Machine Full Servo Control with CE 4

Advanced Baby Training Panties Making Machine Full Servo Control with CE 5

Advanced Baby Training Panties Making Machine Full Servo Control with CE 6

Advanced Baby Training Panties Making Machine Full Servo Control with CE 7

Advanced Baby Training Panties Making Machine Full Servo Control with CE 8

Advanced Baby Training Panties Making Machine Full Servo Control with CE 9

Advanced Baby Training Panties Making Machine Full Servo Control with CE 10

Advanced Baby Training Panties Making Machine Full Servo Control with CE 11

Advanced Baby Training Panties Making Machine Full Servo Control with CE 12

Advanced Baby Training Panties Making Machine Full Servo Control with CE 13

Whatsapp: +008615805080212

Email:jessie@wm-machinery.com

https://www.diapersmachines.com

Focus on the core experience of the product and meet the usage needs of infants

Precise guarantee of fit and leak-proof performance:

Relying on the stable drive of the full servo system, the stretching tension of the elastic waistband (error ±0.5N) and the distance between the leg elastic bands can be precisely controlled to ensure that the pull-up pants fit the waist-hip curves of infants of different weights, neither squeezing the skin nor shifting due to loosening. Meanwhile, by precisely adjusting the thermal pressure parameters of the three-dimensional leak-proof enclosure, the elasticity of the enclosure is maintained for a long time, effectively preventing side leakage of urine. The leak-proof rate of the finished product remains stable at over 98%, meeting parents' core expectation of "no leakage during activities".

Adapt to skin-friendly and comfortable requirements:

Compatible with various skin-friendly surface materials, with the precise control of the conveying speed and bonding pressure by the full servo system, it avoids fiber damage during production and ensures the soft touch of the pull pants. In response to the activity characteristics of toddlers, the crotch cutting parameters can be optimized to create a "narrow crotch design" that better fits leg movements, reducing friction and discomfort during walking. This design can meet the needs of infants at different growth stages without the need to replace core equipment.
